Where you are： TXGA → Products → Printed Circuit Connector → F0JL24-P → F0JL24-P28SW000-01

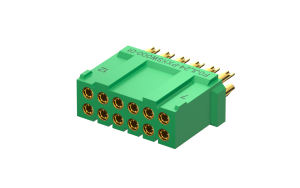

F0JL24-P28SW000-01
Download page
JL24, Plug, 28Circuits, 180°Vertical, Soldering
Product Number：
F0JL24-P28SW000-01
Status：
Active
Data Download Product Introduction Compatible Parts
{{item.nameEn}}
{{file.fileName}}
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL24
Style
Plug
Pitch
2mm
Row Option
Dual row
Number of Positions
28Circuits
Orientation
Vertical(180°)
Colour
Green
 Electrical
Current(Max)
1A
Voltage(Max)
300V
Contact Resistance
12.5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
 Mechanical
Mounting Style
Soldering
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tube
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$24.125174
10+
$22.857450
50+
$20.322001
100+
$19.054277
500+
$16.518829
stock 20 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 1
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
