With the increasing maturity of smart wearable devices, smartwatches are becoming increasingly popular in the market. In addition to providing richer functions, providing users with a more comfortable and seamless wearing experience has become another important development direction for smartwatches.
In this case, TXGA provides a board to board connector for smartwatches, with a rated current of 5A for power contacts and 0.3A for signal contacts. The product has a contact spacing of only 0.35mm and a stacking height of only 0.6mm, which can effectively save internal space of the equipment and achieve high-density circuit connections. The connector adopts a fully armored design, which can prevent damage to the casing and provide a good sense of fit. Meet the miniaturization and lightweight requirements of electronic devices for connectors.
The wireless network card is a terminal wireless network device. It does not need to be wired, and it can enable the computer to access the wireless network by using wireless signals, getting rid of the limitation of network cables. According to different interfaces, wireless network cards mainly include PCMCIA wireless network card, PCI wireless network card, MiniPCI wireless network card, USB wireless network card, CF/SD wireless network card and other products.

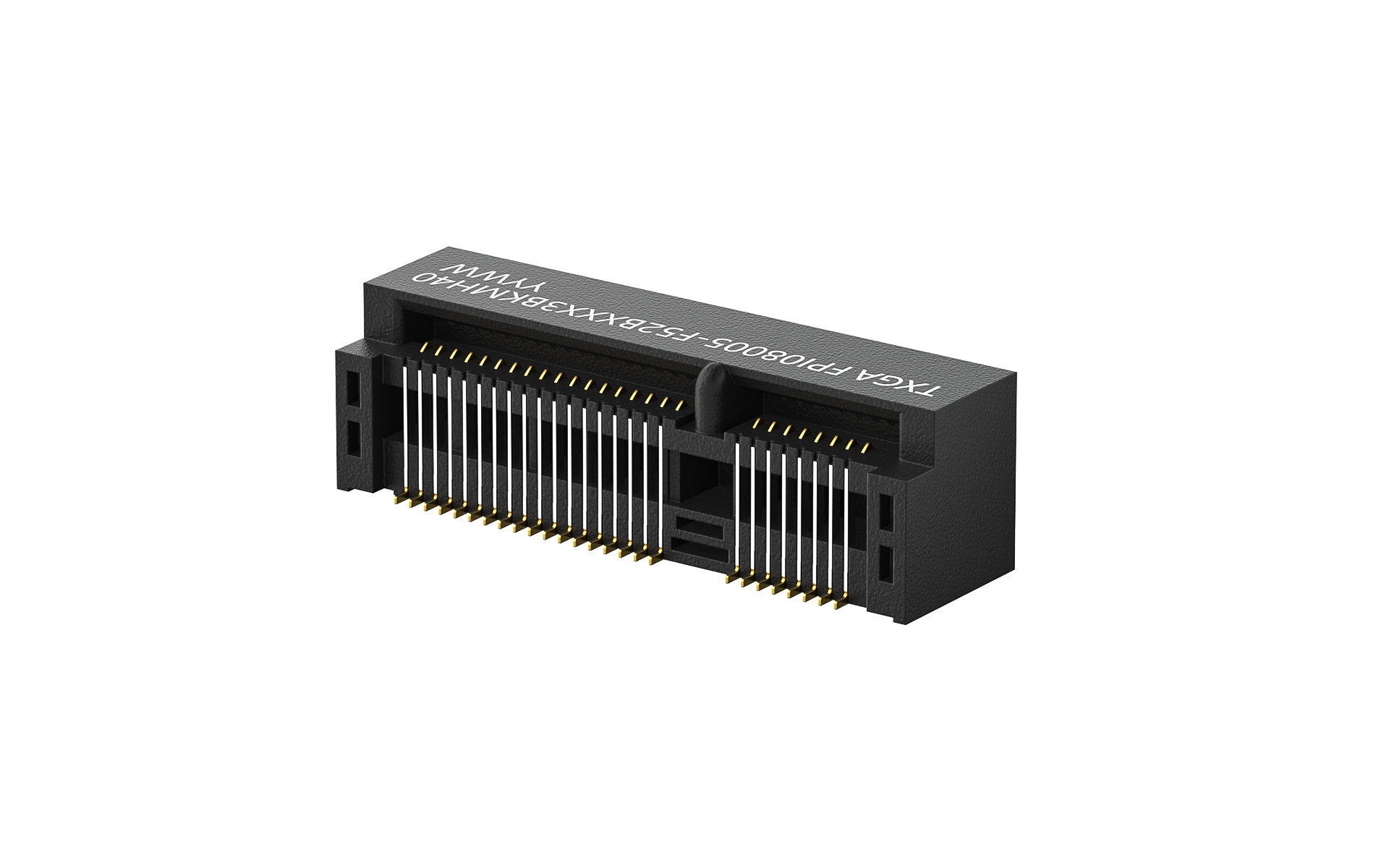

In this case, the MINI PCI-E slot developed and produced by TXGA is a high-speed wireless network card interconnection solution for notebook computers. For the signal transmission stability requirements of wireless network card, the MINI PCI-E slot developed and produced by TXGA adopts point-to-point serial connection, which not only effectively improves the data transmission rate, but also provides higher network bandwidth. The main body of the product is only 4mm high, meeting the integrated design requirements of notebook computers. It can provide a high-speed and stable network experience for laptops in limited space.
The laptop is a small portable personal computer, and the Ultrabook is an upgraded version of the laptop. It uses a smaller and lower power consumption super notebook dedicated processor, which is not only lighter and thinner than a notebook, but also has an ultra long standby time and higher performance, and supports handwriting, touch screen touch and other functions. Provide consumers with low energy consumption and high efficiency mobile life experience.
In this case, TXGA is a USB 3.1 C connector developed and produced for super notebook computer, which is a power interconnection solution for high-power electronic devices. For the high power supply demand of super notebook computers, the USB 3.1 C-connector developed and produced by TXGA has a rated current of 5A, a voltage of 30V, and a power supply power of 100W, meeting the power supply requirements of super notebook computers and fully releasing the strong performance of notebook computers.
The camera module for mobile phones is one of the key components in modern smartphones, consisting of image sensors, lenses, optical components, image processing chips, and other components. With the continuous development of smartphones, lightweight and multi camera has become the main development trend of mobile cameras. As an important data transmission channel for mobile camera modules, board to board connectors are constantly developing towards smaller spacing, lower height, and higher contact density.
TXGA provides a board to board connector for mobile phone camera modules, with a contact spacing of only 0.4 millimeters and a combination height of male and female heads of 0.8 millimeters, meeting the data transmission requirements of mobile phone camera modules in extremely narrow spaces. The connector adopts a circular groove double contact structure design, which can make the contact arrangement more compact, effectively save equipment space, and ensure the structural stability of the connector. Even if the phone falls, it will not cause connector damage, making it a more stable and reliable connection solution for mobile phone camera modules.
SATA (Serial ATA) hard disk, also known as serial hard disk, is the mainstream product of computer hard disk. As the external memory of personal computers and various servers, the serial connection mode adopted by Serial ATA is characterized by its ability to check the transmission instructions and automatically correct errors when found, effectively improving the reliability of data transmission of hard disk.
In this case, the SATA connector provided by TXGA for SATA hard disk is a more convenient interconnection solution for computer hard disk interface. The product adopts the 7+15PIN standard terminal configuration, which is suitable for the mainstream hard disk in the market. The bottom is equipped with a positioning post and a positioning harpoon, which can make the connector accurately and firmly installed on the PCB board, which is convenient for welding and processing. At the same time, it is not easy to be taken out when plugging, meeting the flexible insertion requirements of the computer for the hard disk. Through the graded pins with different lengths, the SATA connector also realizes the hot-swap function, which makes the product more convenient to use. Provide safe and efficient hard disk interface solutions for high-performance computers.
IC chip is a multi-pin integrated circuit. It can interconnect a variety of crystal tubes, resistors, capacitors, inductors and other components and wiring on the circuit board, and become a micro-structure chip with the required circuit functions. Through the integration of components on the IC, electronic components can better achieve miniaturization, low power consumption and high reliability.
In this case, the socket base slot of the IC socket developed and produced by TXGA uses copper tin-plated elastic pieces, which can effectively improve the contact performance and conductivity of the IC chip and socket, and make the chip assembly more flexible and easy to replace the chip at any time. The product is applicable to the working environment from - 40 º C to 105 º C and meets the operating requirements in extreme environments.
The mobile phone SIM card is a user identification card. Through the SIM card holder, the mobile phone can read the digital mobile phone customer information stored on the chip, the encrypted key and other contents, identify the GSM network customer identity, and encrypt the voice information during the call. It completely prevents the risk of parallel connection and phone calls being eavesdropped, and is an important part of mobile phones.
In this case, TXGA is a nano SIM card connector developed and produced for smart phones, which is a data transmission solution for portable communication devices. In view of the thin and light demand of smart phones, the ultra-thin precision Nano SIM card holder developed and produced by TXGA is only 1.37mm high, its contacts are gold-plated, and the product has a plugging life of more than 5000 times. Meet the data reading requirements of SIM card of ultra-thin mobile phone in limited space, and realize flexible layout of internal space for portable devices.
MP3 is a portable digital audio playback device, also known as digital player, which is mainly composed of memory (memory card), display (LCD screen), central processing unit (MCU) or decoding DSP (digital signal processor). MP3 is still popular with consumers because of its small size, light weight, easy operation and low power consumption.
In this case, the earphone socket developed and produced by TXGA is a professional audio output solution for consumer electronic devices. In response to the reliability requirements for MP3 earphones in use, TXGA has developed and produced earphone sockets with elastic structure design for contact terminals, which are stable in insertion and not easy to loosen, and have a plugging life of over 5000 times. At the same time, the contact resistance of the product is only 30 Ω, which can effectively reduce the power consumption of the headset and achieve more durable and stable high-quality audio signal transmission for various types of video playback devices.
Digital camera is a portable camera device, which is composed of control circuit, CCD (electronic photosensitive device) or CMOS electronic components, and can take pictures and videos. With the development of technology, the pixels of digital cameras are getting higher and higher, and the video files are also increasing. Therefore, the data interface of modern digital camera is faced with greater data transmission performance test.
In this case, the IEEE-1394 connector developed and produced by TXGA for digital cameras has a data transmission rate of up to 400Mbps, and supports power supply for external devices, which can realize stable long-distance two-way data transmission. Meet the requirements of high-quality long-distance transmission of multimedia equipment.
