FBB05002-F22S1003K6MH40
Download page

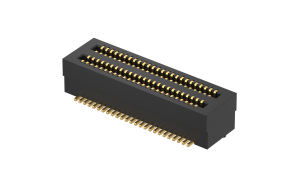

Board to Board 0.5mm 180°Vertical(SMT) Female 22Circuits(H1=4mm)
Product System:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
22Circuits
Peg
With peg
Height(mm)
H4
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.432094
10
$0.407521
50
$0.358374
100
$0.333801
500
$0.284654
1000
$0.222076
2500
$0.219023
5000
$0.215971
10000
$0.212918
25000
$0.209866
stock 50 In stock
MPQ: 1000
MOQ: 1000
