Where you are： TXGA → Products → Board to Board Connector → FBB05002-F → FBB05002-F80S1003K6MH22
FBB05002-F80S1003K6MH22
Download page
Board to Board 0.5mm 180°Vertical(SMT) Female 80Circuits(H1=2.2mm)
Product System：
Board to Board Connector
Series：
Board to Board 0.5mm SMT Female (With peg)
Status：
Active
authentication：
REACH RoHS ELV
Product Drawings
FBB05002-F-4.pdf
Product Specifications
FBB05002-F-3.pdf
Product Specification Compatible Parts
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
80Circuits
Peg
With peg
Height(mm)
H2.2
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

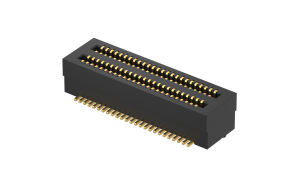

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.227890
10
$1.160464
50
$1.025611
100
$0.958185
500
$0.823333
1000
$0.662795
2500
$0.653621
5000
$0.644447
10000
$0.635274
25000
$0.626100
stock 3 In stock
MPQ： 1000
MOQ： 1000
