FBB05002-M90S1003K6MH20
Download page
Board to Board 0.5mm 180°Vertical(SMT) Male 90Circuits(H2=2mm)
Product System:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
90Circuits
Peg
With peg
Height(mm)
H2
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

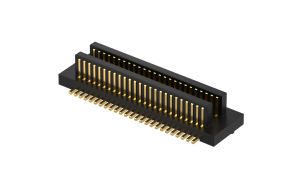

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$2.081263
10
$1.967597
50
$1.740265
100
$1.626599
500
$1.399267
1000
$1.124901
2500
$1.109223
5000
$1.093545
10000
$1.077867
25000
$1.062189
stock 25 In stock
MPQ: 1000
MOQ: 1000
