FBB05006-F30B1005W5M
Download page

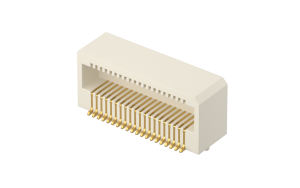

Board to Board 90°Angle 0.5mm 30Circuits
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
30Circuits
Peg
With peg
Height(mm)
H5.4
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
60V
Contact Resistance
60 mΩ Max
Insulation Resistance
800 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.524628
10
$0.427773
50
$0.356747
100
$0.326076
500
$0.287335
1000
$0.223572
5000
$0.220344
10000
$0.217115
stock 8 In stock
MPQ: 1000
MOQ: 1000
