Where you are： TXGA → Products → Board to Board Connector → FBB05008-F → FBB05008-F50S1013W5MH24

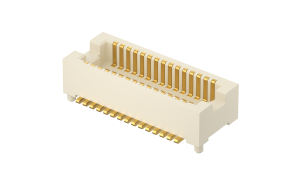

FBB05008-F50S1013W5MH24
Download page
Board to Board 0.5mm, Female, 50Circuits, 180° Vertical(SMT)(H1=2.35mm)
Product System：
Board to Board Connector
Series：
Board to Board 0.5mm SMT Female
Status：
Active
authentication：
REACH RoHS ELV
Product Drawings
FBB05008-F.pdf
3D Drawings
FBB05008-F50S1XX3W5MH24_REF.stp
Product Specifications
FBB05008 Product specification.pdf
Product Specification Compatible Parts
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
50Circuits
Peg
With peg
Height(mm)
H2.35
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.817651
10
$0.772276
50
$0.681526
100
$0.636151
500
$0.545401
1000
$0.435720
2500
$0.429710
5000
$0.423700
10000
$0.417690
25000
$0.411680
stock 100 In stock
MPQ： 1500
MOQ： 1500
