Where you are： TXGA → Products → Board to Board Connector → FBB08009-F → FBB08009-F16S1015K6MH30

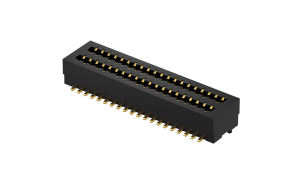

FBB08009-F16S1015K6MH30
Download page
Board to Board 0.8mm, Female, 16Circuits, 180° Vertical(SMT)(H1=3mm)
Product System：
Board to Board Connector
Series：
Board to Board 0.8mm SMT Female
Status：
Active
authentication：
REACH RoHS ELV
Product Drawings
FBB08009-F.pdf
Product Specifications
FBB08009-F-1.pdf
Product Specification Compatible Parts
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Dual row
Number of Positions
16Circuits
Peg
With peg
Height(mm)
H3
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.310472
10
$0.292815
50
$0.257502
100
$0.239845
500
$0.204532
1000
$0.159568
2500
$0.157374
5000
$0.155181
10000
$0.152988
25000
$0.150794
stock： 0 Estimated delivery date 2025-04-29
MPQ： 1500
MOQ： 1500
