FBB08009-F60S1035K6MH40

Download page

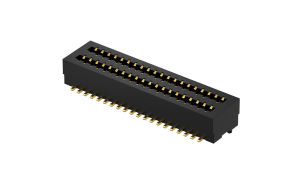

Board to Board Connector, 0.8mm, Female, 60Circuits, Vertical(180°), SMT, With peg, H4,

Product Number：

FBB08009-F60S1035K6MH40

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Socket

Gender

Female

Pitch

0.8mm

Row Option

Dual row

Number of Positions

60Circuits

Peg

With peg

Height(mm)

H4

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

50 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

200V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mechanical

Mounting Style

SMT

Durability (Mating Cycles Max.)

30

Material

Material-Contact

Phosphor bronze

Plating

Gold plated

Plating Thickness

0.075μm

Material-Resin

PA9T

Flammability Rating

UL94 V-0

Packaging

Packaging

Reel

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FBB08009-M60S1015K6MH20

Board to Board 0.8mm, MALE, 60Circuits, 180° Vertical(SMT)(H2=2mm)

FBB08009-M60S1015K6MH40

Board to Board Connector, 0.8mm, Male, 60Circuits, Vertical(180°), SMT, With peg, H4,

FBB08009-M60S1035K6MH40

Board to Board 0.8mm, MALE, 60Circuits, 180° Vertical(SMT)(H2=4.0mm)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
