Where you are： TXGA → Products → Board to Board Connector → FBB08009-F → FBB08009-F80S1015K6MH45

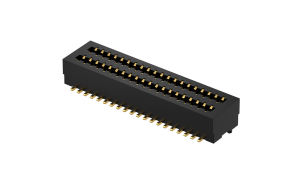

FBB08009-F80S1015K6MH45
Download page
Board to Board 0.8mm, Female, 80Circuits, 180° Vertical(SMT)(H1=4.5mm)
Product System：
Board to Board Connector
Series：
Board to Board 0.8mm SMT Female
Status：
Inactive
authentication：
REACH RoHS ELV
Product Drawings
FBB08009-F.pdf
Product Specifications
FBB08009-F-1.pdf
Product Specification Compatible Parts
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Dual row
Number of Positions
80Circuits
Peg
With peg
Height(mm)
H4.5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.300785
10
$1.229356
50
$1.086498
100
$1.015069
500
$0.872211
1000
$0.702142
2500
$0.692424
5000
$0.682706
10000
$0.672987
25000
$0.663269
stock： 0 Estimated delivery date 2025-05-07
MPQ： 1500
MOQ： 1500
