FBB08009-M40S1015K6MH40

Download page

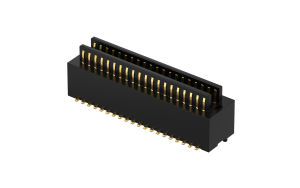

Board to Board 0.8mm, Male, 40Circuits, 180° Vertical(SMT)(H2=4mm)

Product Number：

FBB08009-M40S1015K6MH40

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Plug

Gender

Male

Pitch

0.8mm

Row Option

Dual row

Number of Positions

40Circuits

Peg

With peg

Height(mm)

H4

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

50 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

200V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mechanical

Mounting Style

SMT

Durability (Mating Cycles Max.)

30

Material

Material-Contact

Phosphor bronze

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PA9T

Flammability Rating

UL94 V-0

Packaging

Packaging

Reel

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FBB08009-F40S1015K6MH30

Board to Board 0.8mm, Female, 40Circuits, 180° Vertical(SMT)(H1=3mm)

FBB08009-F40S1015K6MH40

Board to Board 0.8mm, Female, 40Circuits, 180° Vertical(SMT)(H1=4mm)

FBB08009-F40S1015K6MH45

Board to Board 0.8mm, Female, 40Circuits, 180° Vertical(SMT)(H1=4.5mm)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$0.615288

10+

$0.581143

50+

$0.512853

100+

$0.478708

500+

$0.410418

stock 10 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 700

MOQ： 1400

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
