FBH12707-D100S1004K6L
Download page

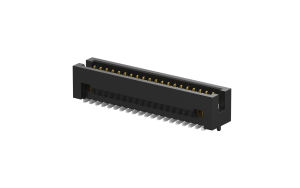

Box Header 1.27mm 180°Vertical 100Circuits(SMT)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
1.27mm
Row Option
Dual row
Number of Positions
100Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.851474
10
$1.750080
50
$1.547293
100
$1.445899
500
$1.243112
1000
$1.000046
2500
$0.986156
5000
$0.972267
10000
$0.958377
25000
$0.944488
stock: 0 Estimated delivery date 2025-04-22
MPQ: 20
MOQ: 20
