FBH12710-D34B1003K6K Ejector Box Header 1.27mm 90°Angle 34Circuits(DIP)

FBH12710-D34B1003K6K

Download page

Ejector Box Header 1.27mm 90°Angle 34Circuits(DIP)

Product Number：

FBH12710-D34B1003K6K

Status：

Active

Data Download Product Introduction Product Compliance

Category

Product Catalog

Connectors

Product System

Box Header/IDC

Product Category

Ejector Box Header

Style

Socket

Pitch

1.27mm

Row Option

Dual row

Number of Positions

34Circuits

Orientation

Right angle(90°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

Gold flash

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

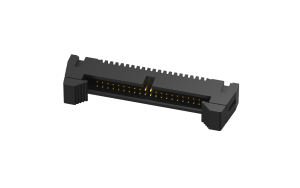

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
