FBH12714-D60S1004K6M
Download page
Box Header 1.27mm 180°Vertical 60Circuits(SMT)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
1.27mm
Row Option
Dual row
Number of Positions
60Circuits
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

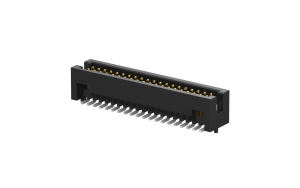

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.044359
10
$0.986403
50
$0.870491
100
$0.812535
500
$0.696623
1000
$0.556531
2500
$0.548854
5000
$0.541178
10000
$0.533502
25000
$0.525826
stock 10 In stock
MPQ: 20
MOQ: 20
