FBH20001-D34S1004K6K
Download page

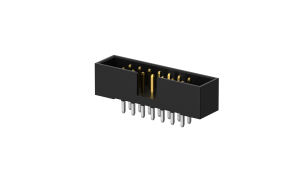

Box Header 2.0mm 180°Vertical 34Circuits(DIP)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
34Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.304490
10
$0.287173
50
$0.252540
100
$0.235224
500
$0.200591
1000
$0.156493
2500
$0.154342
5000
$0.152191
10000
$0.150040
25000
$0.147889
stock: 0 Estimated delivery date 2025-01-22
MPQ: 20
MOQ: 20
