FBH20023-D20B1155BKK
Download page
Box Header 2mm, 20Circuits, 90° Angle(DIP), 15μ", PA9T
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.375μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

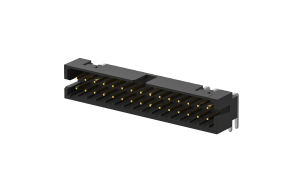

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$2.303880
10
$2.178056
50
$1.926408
100
$1.800584
500
$1.548936
1000
$1.245223
2500
$1.227868
5000
$1.210513
10000
$1.193158
25000
$1.175803
stock: 0 Estimated delivery date 2025-04-22
MPQ: 240
MOQ: 1200
