FCD407-6M
Download page

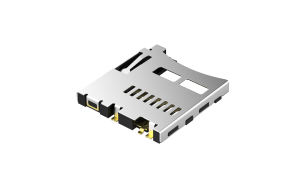

Micro SD card connector(H1.9mm)(Push to Push)
Product Number:
FCD407-6M
Status:
Active
Category
Product Catalog
Connectors
Product System
Card Connector
Product Category
SD card connector
Type
Micro type
Number of Positions
8Circuits
Height(mm)
H1.9
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
100V
Contact Resistance
100 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Card Install Type
Push-push
Mounting Style
SMT
Durability (Mating Cycles Max.)
5000
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥3.610852
10+
¥3.405501
50+
¥2.994801
100+
¥2.789450
500+
¥2.378748
stock 492 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1000
MOQ: 1

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
