FCQ12003-A03P2211BKB000
Download page

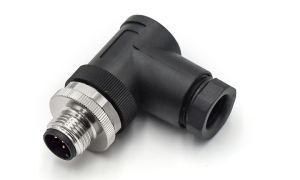

M12X1.0 MALE, RA UNSHIELDED SCREW TYPE, A-CODED, 3Circuits, PG7
Product Number:
FCQ12003-A03P2211BKB000
Status:
Active
Category
Product Catalog
Connectors
Product System
M12 Circular Connector
Style
Plug
Gender
Male
Coding
A coding
Shielded
Non-shielded
Number of Positions
3Circuits
Contacts Type
pin
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
4A
Voltage(Max)
250V
Contact Resistance
8 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
2500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP67
Panel Mount Feature
N/A
Mounting Style
Screw locking
Durability (Mating Cycles Max.)
100
Material
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
PA
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥36.035151
50+
¥30.893142
100+
¥30.026049
500+
¥26.596511
stock 49 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 50
MOQ: 50

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
