FFC05001-16SBB124W5M
Download page

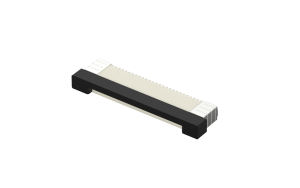

FPC/FFC connector 0.5mm Lower contact 16Circuits(2mm)(SMT)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
16Circuits
Contact Mating Location
Bottom contact
Height(mm)
H2
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Slider
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.132292
10
$0.124444
50
$0.108747
100
$0.100899
500
$0.085203
1000
$0.063306
2500
$0.062439
5000
$0.061571
10000
$0.060704
25000
$0.059837
stock 168 In stock
MPQ: 2000
MOQ: 2000
