FFC10001-04SBA124W5M
Download page

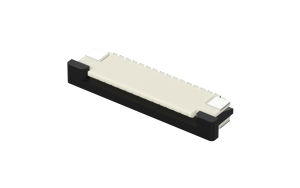

FPC/FFC connector 1mm UpperContact 4Circuits(H2.7)(SMT)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
1mm
Number of Positions
4Circuits
Contact Mating Location
Top contact
Height(mm)
H2.7
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Slider
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.122186
10
$0.114348
50
$0.098672
100
$0.090834
500
$0.075158
1000
$0.049709
2500
$0.049031
5000
$0.048352
10000
$0.047673
25000
$0.046995
stock: 0 Estimated delivery date 2025-01-27
MPQ: 1500
MOQ: 1500
