FFC10010-16DSA226W1L
Download page
FPC/FFC connector 1mm, 16Circuits, 180° Vertical(DIP), Positive needle
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
1mm
Number of Positions
16Circuits
Pin Position
Positive pin
Height(mm)
H5.5
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
800 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
Non-ZIF
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube
FAILED

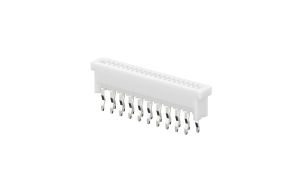

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.133401
10
$0.125487
50
$0.109659
100
$0.101745
500
$0.085917
1000
$0.063837
2500
$0.062962
5000
$0.062088
10000
$0.061213
25000
$0.060339
stock 921 In stock
MPQ: 32
MOQ: 1024
