FFC10010-20DSA226W1L
Download page

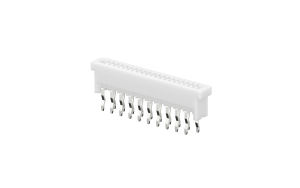

FPC/FFC connector 1mm, 20Circuits, 180° Vertical(DIP), Positive needle
Product Number:
FFC10010-20DSA226W1L
Status:
Active
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
1mm
Number of Positions
20Circuits
Pin Position
Positive pin
Height(mm)
H5.5
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
800 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
Non-ZIF
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{1.708778 | tradeCurrencySymbol}}
10+
{{1.607406 | tradeCurrencySymbol}}
50+
{{1.40466 | tradeCurrencySymbol}}
100+
{{1.303287 | tradeCurrencySymbol}}
500+
{{1.100541 | tradeCurrencySymbol}}
stock 35 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 990
MOQ: 990

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
