FFC10028-04SBD224K6M
Download page
FPC/FFC connector 1mm Double contact 4Circuits(H3)(SMT)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
1mm
Number of Positions
4Circuits
Contact Mating Location
Double contact
Height(mm)
H3
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
800 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
Non-ZIF
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

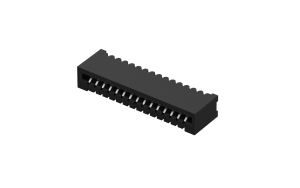

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.114689
10
$0.107332
50
$0.092618
100
$0.085261
500
$0.070546
1000
$0.046659
2500
$0.046022
5000
$0.045385
10000
$0.044748
25000
$0.044111
stock 10 In stock
MPQ: 1500
MOQ: 1500
