FFC10032-10SBB123W5M
Download page

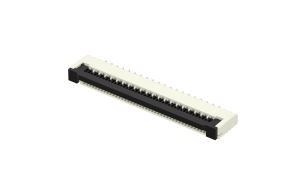

FPC/FFC connector 1mm Lower Contact 10Circuits(H2.13)(SMT)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
1mm
Number of Positions
10Circuits
Contact Mating Location
Bottom contact
Height(mm)
H2.13
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Front flip
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.194188
10
$0.182668
50
$0.159628
100
$0.148107
500
$0.125067
1000
$0.092925
2500
$0.091652
5000
$0.090379
10000
$0.089106
25000
$0.087833
stock 307 In stock
MPQ: 2000
MOQ: 2000
