FFH20006-D34S1004K6K
Download page

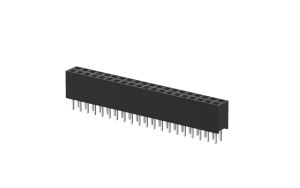

Female Header 2mm 180°Vertical Double row 34Circuits(DIP)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
34Circuits
Height(mm)
H6.35
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.424757
10
$0.400601
50
$0.352289
100
$0.328133
500
$0.279821
1000
$0.218305
2500
$0.215304
5000
$0.212304
10000
$0.209303
25000
$0.206302
stock 4 In stock
MPQ: 20
MOQ: 20
