FFH20012-D24S1004K6M1A
Download page

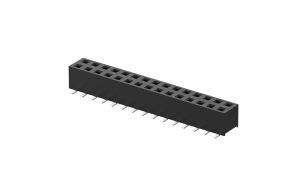

Female Header 2mm 180°Vertical Double row 24Circuits(SMT)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Type
Type A
Pitch
2mm
Row Option
Dual row
Number of Positions
24Circuits
Peg
With peg
Height(mm)
H4.6
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel(With mylar)
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.323229
10
$0.304847
50
$0.268082
100
$0.249700
500
$0.212936
1000
$0.166124
2500
$0.163841
5000
$0.161557
10000
$0.159274
25000
$0.156990
stock: 0 Estimated delivery date 2025-04-30
MPQ: 20
MOQ: 20
