FFH20015-D22S1004K6M
Download page
Female Header 2mm 180°Vertical Double row 22Circuits(SMT)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
22Circuits
Peg
With peg
Height(mm)
H4.6
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

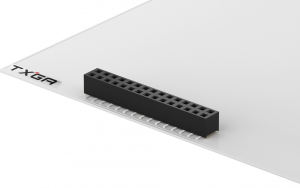

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.344720
10
$0.325116
50
$0.285907
100
$0.266303
500
$0.227094
1000
$0.177170
2500
$0.174735
5000
$0.172299
10000
$0.169864
25000
$0.167429
stock: 0 Estimated delivery date 2025-04-22
MPQ: 1000
MOQ: 1000
