FHG25404-D38M1K6B
Download page

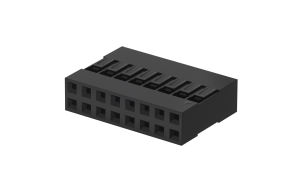

Wire to board housing 2.54mm 38Circuits (Black)
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
2.54mm
Row Option
Dual row
Number of Positions
38Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2.5A
Voltage(Max)
250V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.197682
10
$0.170226
50
$0.153753
100
$0.123551
500
$0.102136
1000
$0.074680
5000
$0.072483
10000
$0.071385
stock: 0 Estimated delivery date 2025-04-21
MPQ: 500
MOQ: 1000
