FID20002-163K6K
Download page
IDC 2mm 16Circuits(3 Assemblies)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
IDC Connector
Style
Plug
Pitch
2mm
Row Option
Dual row
Number of Positions
16Circuits
Assemblies
3 Assemblies
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
IDC
Material
Material-Contact
Brass
Plating
Gold on contact, nickel on tail
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

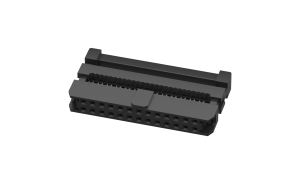

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.223572
10
$0.157000
50
$0.134809
100
$0.125378
500
$0.104851
1000
$0.076558
5000
$0.075449
10000
$0.074339
stock: 0 Estimated delivery date 2025-04-25
MPQ: 2000
MOQ: 2000
