FLV05003-51SBB1033K6M
Download page

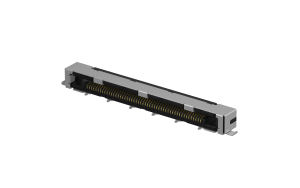

LVDS 0.5mm 90°Angle 51Circuits(SMT)(3μ'')
Product Number:
FLV05003-51SBB1033K6M
Status:
Active
Category
Product Catalog
Connectors
Product System
LVDS Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Number of Positions
51Circuits
Contact Mating Location
Bottom contact
Height(mm)
H3.75
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
100V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{4.723946 | tradeCurrencySymbol}}
10+
{{4.455883 | tradeCurrencySymbol}}
50+
{{3.919756 | tradeCurrencySymbol}}
100+
{{3.651693 | tradeCurrencySymbol}}
500+
{{3.115568 | tradeCurrencySymbol}}
stock 783 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1800
MOQ: 1800

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FLV05003-51SBB1033K6M
LVDS 0.5mm 90°Angle 51Circuits(SMT)(3μ'')
MPQ: 1800
MOQ: 1800

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
