FRF05002-JSS103M
Download page

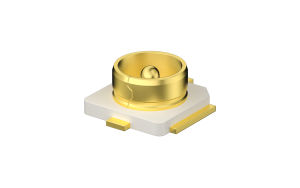

Micro coaxial connector, Jack, 50Ω, pin, Vertical(180°), 0.075μm, SMT, Gen 1
Product Number:
FRF05002-JSS103M
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
RF Connector
Product Category
MCRF
Features
Standard
Style
Socket
Number of Positions
1Circuit
Contacts Type
pin
Orientation
Vertical(180°)
Colour
Natural
Electrical
Voltage(Max)
60V
Contact Resistance
15 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Impedance
50Ω
Frequency Range (Max.)
6 GHz
VSWR
1.4 Max
Mechanical
Fastening Method
No
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.199901
20+
$0.162885
500+
$0.138818
1000+
$0.118463
5000+
$0.114761
stock 5413 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 5000
MOQ: 5000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
