FUS632-FSBK6M
Download page

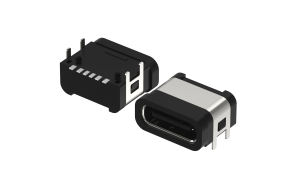

Waterproof USB3.1 C-type 6Circuits, Female, 90° Angle(SMT)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
3D Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
USB Connector
Product Category
USB3.1
Style
Socket
Gender
Female
Type
Type C
Number of Positions
6Circuits
Peg
With peg
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
5V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IPX7
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.742729
10
$0.701512
50
$0.619077
100
$0.577860
500
$0.495425
1000
$0.395794
2500
$0.390335
5000
$0.384876
10000
$0.379417
25000
$0.373957
stock 140 In stock
MPQ: 600
MOQ: 2400
