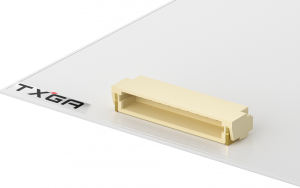

FWF08002-S08B13W5M
Download page
Wafer 0.80mm, 8Circuits, 90° Angle(SMT), Gold, LCP
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Single row
Number of Positions
8Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.291135
10
$0.194090
50
$0.166363
100
$0.152499
500
$0.128931
1000
$0.093926
5000
$0.092539
10000
$0.091153
stock 3040 In stock
MPQ: 3500
MOQ: 3500
