FWF25001-S10S22W1B
Download page

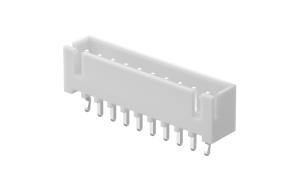

Wafer 2.5mm 180°Vertical 10Circuits (DIP)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.5mm
Row Option
Single row
Number of Positions
10Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.081883
10
$0.057800
50
$0.044313
100
$0.037570
500
$0.030947
1000
$0.019628
5000
$0.019146
10000
$0.018905
stock 16020 In stock
MPQ: 1000
MOQ: 1000
