FWF25404-S08S12K6B
Download page

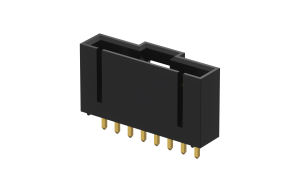

Wafer 2.54mm 180°Vertical 8Circuits (DIP)
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
2.54mm
Row Option
Single row
Number of Positions
8Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2.5A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.207530
10
$0.195218
50
$0.170595
100
$0.158283
500
$0.133660
1000
$0.099310
2500
$0.097949
5000
$0.096589
10000
$0.095228
25000
$0.093868
stock 2 In stock
MPQ: 500
MOQ: 1000
