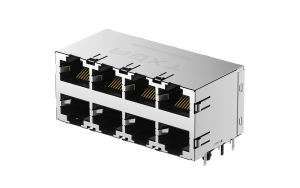

FRJ45022-8100K6K0200
Download page
RJ45 Connector 90°Angle, 8Ports, Gold flash, Black, Non-LED,
Product System：
Network Connector (RJ45/RJ11)
Product Category：
RJ45 Connector
Status：
Active
authentication：
REACH RoHS ELV
Product Drawings
FRJ45022.pdf
3D Drawings
frj45022_ref.stp
Product Specification
Product Specification
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
8Ports
Number of Positions
64Circuits
Positions/Contacts
8P8C
LED Status Indicator
No
Orientation
Right angle(90°)
Colour
Black
Contact Type
Round pin
Electrical
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.979267
10
$1.870875
50
$1.654091
100
$1.545699
500
$1.328915
1000
$1.069071
2500
$1.054223
5000
$1.039375
10000
$1.024527
25000
$1.009678
stock： 0 Estimated delivery date 2025-04-22
MPQ： 100
MOQ： 1000
