FRJ45026-2100K6K2200
Download page

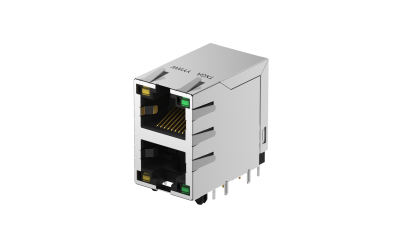

RJ45 Connector 90°Angle, 2Ports, Gold flash, Black, L:green, R:yellow,
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
2Ports
Number of Positions
16Circuits
Positions/Contacts
8P8C
LED Status Indicator
L:green,R:yellow
Orientation
Right angle(90°)
Colour
Black
Contact Type
Round pin
Electrical
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
50 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.514146
10
$1.431001
50
$1.264711
100
$1.181566
500
$1.015275
1000
$0.817311
2500
$0.805999
5000
$0.794686
10000
$0.783374
25000
$0.772062
stock 70 In stock
MPQ: 35
MOQ: 1015
