Where you are： TXGA → Products → Network Connector (RJ45/RJ11) → FRJ45028 → FRJ45028-1100K6K02A0

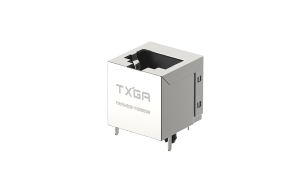

FRJ45028-1100K6K02A0
Download page
RJ45 Connector, Vertical(180°), Through hole, 1Port, Gold flash, Black, Non-LED,
Product System：
Network Connector (RJ45/RJ11)
Product Category：
RJ45 Connector
Series：
RJ45 8P8C/8P6C 180°Vertical 1Port
Status：
Active
authentication：
REACH RoHS ELV
Product Drawings
FRJ45028.pdf
3D Drawings
FRJ45028_ref.rar
Product Specification
Product Specification
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Type
Type A
Port Configuration 
1Port
Number of Positions
6Circuits
Positions/Contacts
8P6C
LED Status Indicator
No
Orientation
Vertical(180°)
Colour
Black
Contact Type
Round pin
Electrical
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.394930
10
$0.372470
50
$0.327551
100
$0.305091
500
$0.260171
1000
$0.202975
2500
$0.200185
5000
$0.197395
10000
$0.194605
25000
$0.191815
stock 33 In stock
MPQ： 100
MOQ： 1000
