FRJ45048-1300K6K2102
Download page
RJ45 Connector 90°Angle, 1Port, Gold flash, Black, L:green, R:yellow, 1000Base-T
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Port Configuration 
1Port
Number of Positions
10Circuits
Positions/Contacts
10P8C
LED Status Indicator
L:green,R:yellow
Orientation
Right angle(90°)
Colour
Black
Contact Type
Square pin
Electrical
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
40 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Data Rate
10/100/1000Base-T
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
Gold flash
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

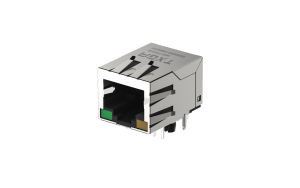

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$2.398789
10
$2.267781
50
$2.005767
100
$1.874760
500
$1.612745
1000
$1.296520
2500
$1.278451
5000
$1.260380
10000
$1.242311
25000
$1.224240
stock 56 In stock
MPQ: 50
MOQ: 5000
