FRJ45176-1303BKK01A0
Download page

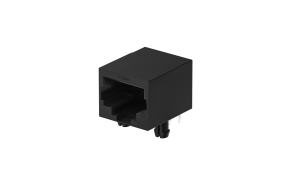

RJ45 Connector 90°Angle, 1Port, 3μ", Black, Non-LED, (PCB H2.4)
Product Number:
FRJ45176-1303BKK01A0
Status:
Active
Category
Product Catalog
Connectors
Product System
Network Connector (RJ45/RJ11)
Product Category
RJ45 Connector
Style
Socket
Type
Type A
Port Configuration 
1Port
Number of Positions
8Circuits
Positions/Contacts
10P8C
LED Status Indicator
No
Orientation
Right angle(90°)
Colour
Black
Contact Type
Square pin
Electrical
Current(Max)
1.5A
Voltage(Max)
125V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥4.094027
10+
¥3.548157
50+
¥2.947699
100+
¥2.688411
500+
¥2.360889
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 200
MOQ: 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: ¥{{ product.price}}
Total prices: ¥{{ product.subTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
