F00MPC-P12SD200-01
Download page

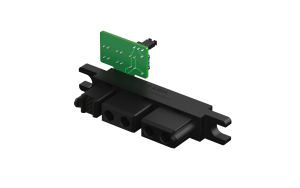

Charging pile module power connector, Plug, 12Circuits, 180°Vertical, DC, 20KW
Product Number:
F00MPC-P12SD200-01
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Charging Pile Module Power Connector
Style
Plug
Gender
Female
Number of Positions
12Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
75A
Voltage(Max)
1000V
Contact Resistance
12 mΩ Max
Insulation Resistance
3000 MΩ Min
Withstanding Voltage
3000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Current Type
DC
Mechanical
Mounting Style
N/A
Material
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$10.745976
10+
$9.804097
50+
$8.690968
100+
$8.220029
500+
$7.064088
stock 2 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
