F00SMA-J50S0SHW-01
Download page

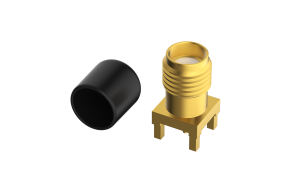

SMA, Jack, 50Ohm, socket, 180° Vertical, PCB welding, Through Hole (With dust cap)
Product Number:
F00SMA-J50S0SHW-01
Status:
Active
Category
Product Catalog
Connectors
Product System
RF Connector
Product Category
SMA
Style
Socket
Number of Positions
1Circuit
Contacts Type
socket
Orientation
Vertical(180°)
Colour
White
Electrical
Voltage(Max)
335V
Contact Resistance
3 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Impedance
50Ω
Frequency Range (Max.)
6 GHz
VSWR
1.35 Max
Mechanical
Panel Mount Feature
N/A
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.2μm
Material-Resin
PTFE
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{9.481748 | tradeCurrencySymbol}}
20+
{{8.146017 | tradeCurrencySymbol}}
500+
{{7.912378 | tradeCurrencySymbol}}
1000+
{{7.511773 | tradeCurrencySymbol}}
5000+
{{7.311756 | tradeCurrencySymbol}}
stock 970 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 200
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F00SMA-J50S0SHW-01
SMA, Jack, 50Ohm, socket, 180° Vertical, PCB welding, Through Hole (With dust cap)
MPQ: 200
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
