F00SMB-P75S0B0W-01
Download page

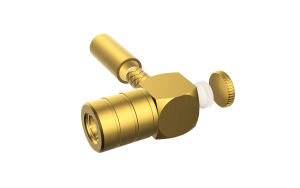

SMB, Plug, 75Ohm, socket, 90° Angle, , Soldering
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
RF Connector
Product Category
SMB
Features
Standard
Style
Plug
Number of Positions
1Circuit
Contacts Type
socket
Orientation
Right angle(90°)
Colour
White
Electrical
Voltage(Max)
335V
Contact Resistance
6 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Impedance
75Ω
Frequency Range (Max.)
3 GHz
VSWR
1.45 Max
Mechanical
Fastening Method
No
Mounting Style
Soldering
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.2μm
Material-Resin
PTFE
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.573830
20
$1.352119
500
$1.313338
1000
$1.246844
5000
$1.213644
10000
$1.180349
stock 199 In stock
MPQ: 1
MOQ: 500
