F0CM16-S007PSW0-0001
Download page

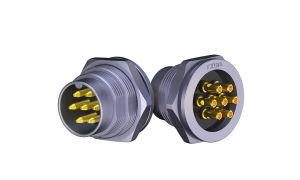

M16X0.75 Socket, 7Circuits, Pin, 180° Vertical, Soldering,
Product Number:
F0CM16-S007PSW0-0001
Status:
Active
Category
Product Catalog
Connectors
Product System
M16 Circular Connector
Style
Socket
Gender
Male
Shielded
Shielded
Number of Positions
7Circuits
Contacts Type
pin
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
7A
Voltage(Max)
150V
Contact Resistance
5 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M18x0.75
Mounting Style
Soldering
Durability (Mating Cycles Max.)
500
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥44.151622
10+
¥40.266280
50+
¥35.497904
100+
¥33.555233
500+
¥28.786858
stock 133 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 42
MOQ: 210

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
