Where you are： TXGA → Products → Printed Circuit Connector → F0JL04-P → F0JL04-P06SW000-01

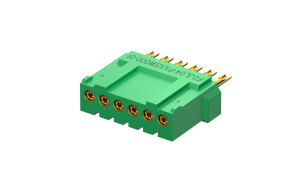

F0JL04-P06SW000-01
Download page
JL4, Plug, 6Circuits, 180°Vertical, Soldering
Product Number：
F0JL04-P06SW000-01
Status：
Active
Data Download Product Introduction Compatible Parts
{{item.nameEn}}
{{file.fileName}}
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL4
Style
Plug
Pitch
2mm
Row Option
Single row
Number of Positions
6Circuits
Orientation
Vertical(180°)
Colour
Green
 Electrical
Current(Max)
1A
Voltage(Max)
300V
Contact Resistance
12.5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
 Mechanical
Mounting Style
Soldering
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tube
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$6.842580
10+
$6.493172
50+
$5.736120
100+
$5.357595
500+
$4.329940
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 1
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time： In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F0JL04-P06SW000-01
JL4, Plug, 6Circuits, 180°Vertical, Soldering
MPQ： 1
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
