Where you are： TXGA → Products → Printed Circuit Connector → F0JL27-P → F0JL27-P07SW000-01

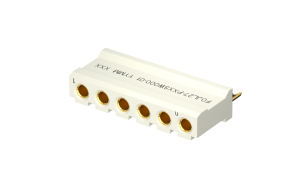

F0JL27-P07SW000-01
Download page
JL27, Plug, 7Circuits, 180°Vertical, Soldering
Product Number：
F0JL27-P07SW000-01
Status：
Active
Data Download Product Introduction
{{item.nameEn}}
{{file.fileName}}
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL27
Style
Plug
Pitch
3.96mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Vertical(180°)
Colour
Natural
 Electrical
Current(Max)
13A
Voltage(Max)
250V
Contact Resistance
3.8 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
 Mechanical
Mounting Style
Soldering
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tube
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$13.673275
10+
$12.950221
50+
$11.504113
100+
$10.781059
500+
$9.334951
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 1
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time： In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F0JL27-P07SW000-01
JL27, Plug, 7Circuits, 180°Vertical, Soldering
MPQ： 1
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
