F0JL27-P18SW000-01
Download page
JL27, Plug, 18Circuits, 180°Vertical, Soldering
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL27
Style
Plug
Pitch
3.96mm
Row Option
Single row
Number of Positions
18Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
13A
Voltage(Max)
250V
Contact Resistance
3.8 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Mechanical
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube
FAILED

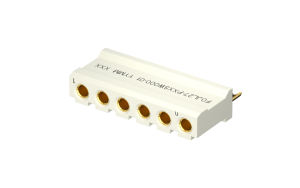

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$29.425753
10
$27.889468
50
$24.816900
100
$23.280616
500
$20.208047
1000
$16.071897
2500
$15.835546
5000
$15.599194
10000
$15.362843
25000
$15.126491
stock: 0 Estimated delivery date 2025-02-10
MPQ: 1
MOQ: 10
