F0JL35-S10RD000-01
Download page

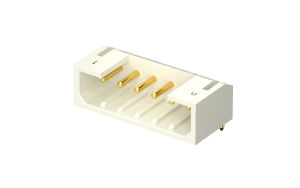

JL35, Socket, 10Circuits, 90°Angle, Through Hole
Product System:
Product Category:
Status:
Active
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL35
Style
Socket
Pitch
2.54mm
Row Option
Single row
Number of Positions
10Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
3A
Voltage(Max)
300V
Contact Resistance
10 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$4.960113
10
$4.693030
50
$4.158864
100
$3.891781
500
$3.357615
1000
$2.689908
2500
$2.651753
5000
$2.613598
10000
$2.575443
25000
$2.537289
stock 4 In stock
MPQ: 1
MOQ: 10
