Where you are： TXGA → Products → Printed Circuit Connector → FXJL35-S → F1JL35-S10SD000-01

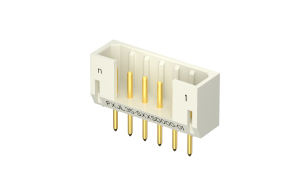

F1JL35-S10SD000-01
Download page
JL35, Socket, 10Circuits, 180°Vertical, Through Hole
Product Number：
F1JL35-S10SD000-01
Status：
Active
Data Download Product Introduction Compatible Parts
{{item.nameEn}}
{{file.fileName}}
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL35
Style
Socket
Pitch
2.54mm
Row Option
Single row
Number of Positions
10Circuits
Orientation
Vertical(180°)
Colour
Natural
 Electrical
Current(Max)
3A
Voltage(Max)
300V
Contact Resistance
10 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tube
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$6.817551
10+
$6.452608
50+
$5.722723
100+
$5.357781
500+
$4.627895
stock 14 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 1
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
