FBA25014-S02B2004K
Download page

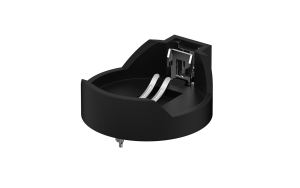

Button Battery Connector, 2Circuits (DIP) (CR2032)
Product Number:
FBA25014-S02B2004K
Status:
Active
Category
Product Catalog
Connectors
Product System
Battery Connector
Product Category
Button cell socket
Style
Socket
Number of Positions
2Circuits
Applicable Battery Model
CR2032
Orientation
Vertical(180°)
Colour
Black
Electrical
Voltage(Max)
3V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Bright tin plated
Plating Thickness
2μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{1.031282 | tradeCurrencySymbol}}
10+
{{0.970102 | tradeCurrencySymbol}}
50+
{{0.84774 | tradeCurrencySymbol}}
100+
{{0.786559 | tradeCurrencySymbol}}
500+
{{0.664198 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 300
MOQ: 3000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FBA25014-S02B2004K
Button Battery Connector, 2Circuits (DIP) (CR2032)
MPQ: 300
MOQ: 3000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
